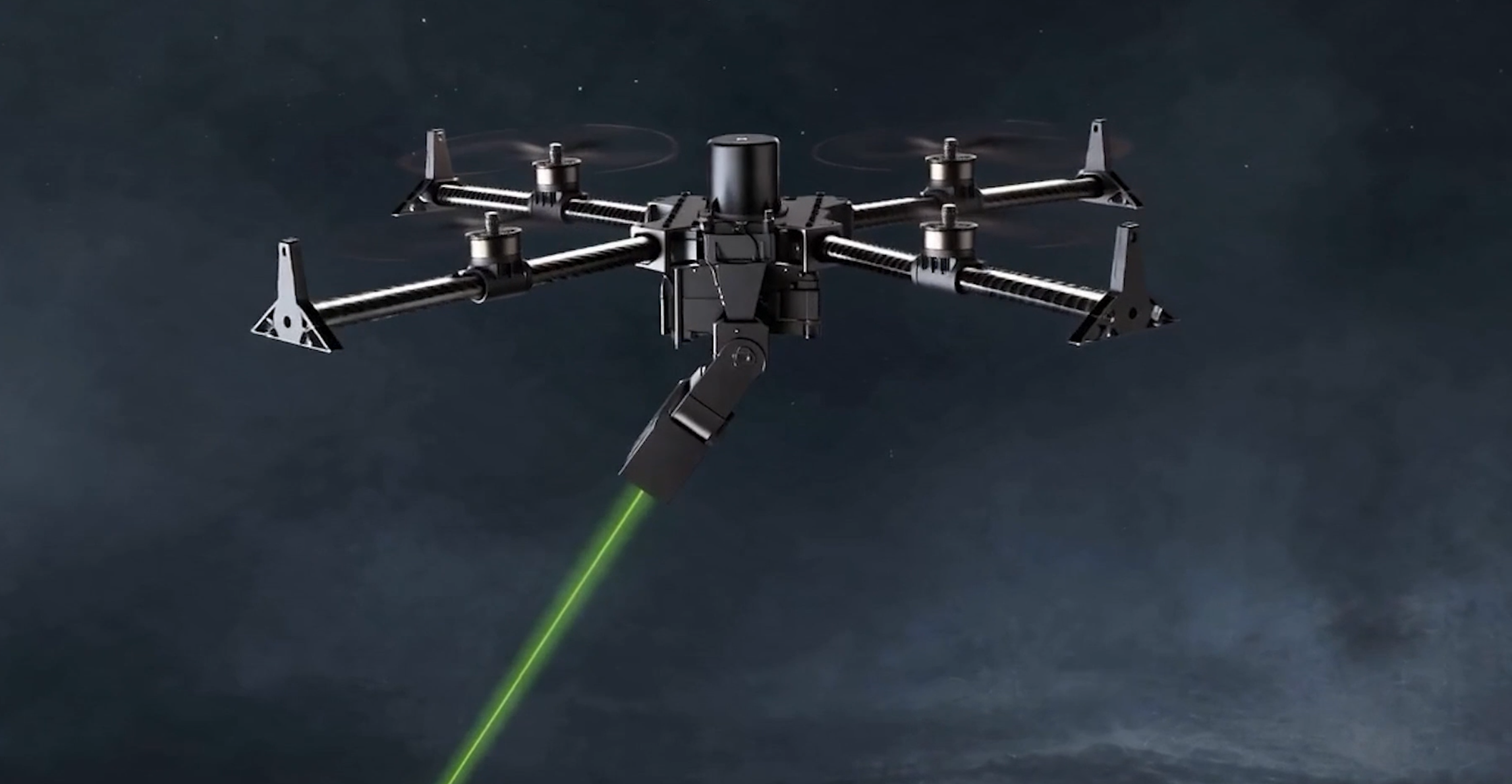

Modular Multi-Effects Platform
Modular payload system supporting fireworks, lasers, coldfireworks, lanterns, aerial cameras, strobes, smoke effects, and more.
Redefine drone shows into immersive aerial effect experiences.
Triple Safety Architecture
Dual-layer protection architecture, automated self-check,
and emergency RTH functionality ensures reliable aerial effects mission execution.

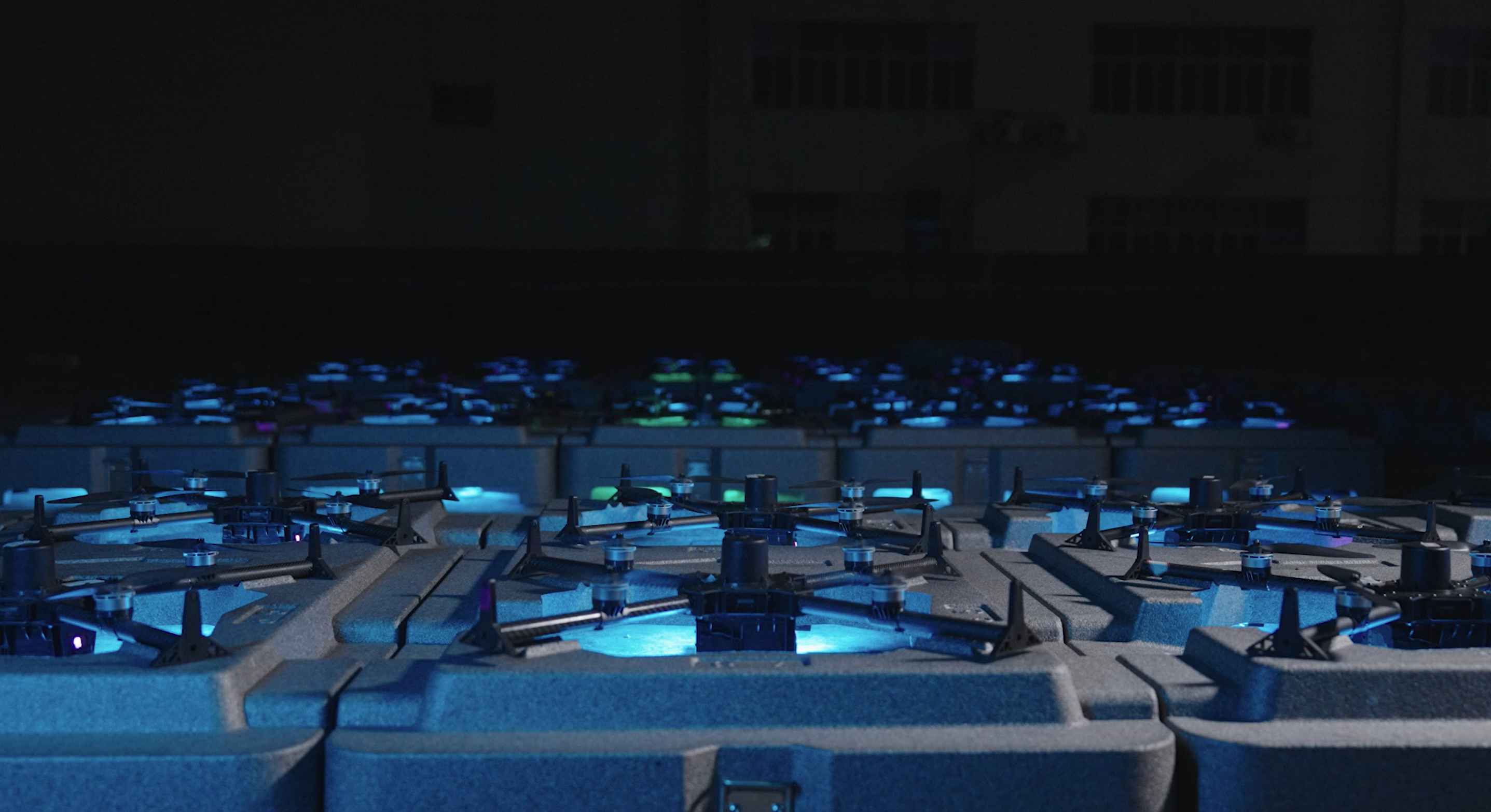

Dual Efficiency Breakthroughs
Docking case plus quick-release fireworks mounting system, boosting overall deployment efficiency by 60%.
X1 Parameter
-
Dimensions520mm x 520mm x 138mm
-
Wheelbase374mm
-
Weight1260g (±3g)
-
Max Wind Resistance≤8m/s
-
PositioningRTK (GPS / GLONASS / Galileo / QZSS / BDS Supported)
-
Battery Capacity5000mAh
-
No-payload Endurance47min
-
Suggested Show Time800g payload: ≤ 12min
600g Payload≤16min
500g payload: ≤18min -
Max Payload1200g (5min flight)
-
Docking CaseSupports Dock-based Takeoff/Landing
10 drones total (2 drones/layer, 5 layers) -
Power of Light0-24W
-
Show Light Color TypeRGBW full color
-
Minimum Show Spacing2.9m
-
WiFi Communication MethodWIFI 5 / WIFI 6
-
Operating Temperature-15°C to 45°C (Preheating Required Below 0°C)
-
Ground Control Station (GCS) CapacitySupports over 20,000 drones
-
Redundant separation of critical componentsDual IMU
-
Supported Fireworks Quantity4-16 units
-
Type of PayloadsLaser, fireworks, lantern, strobe light, etc.
